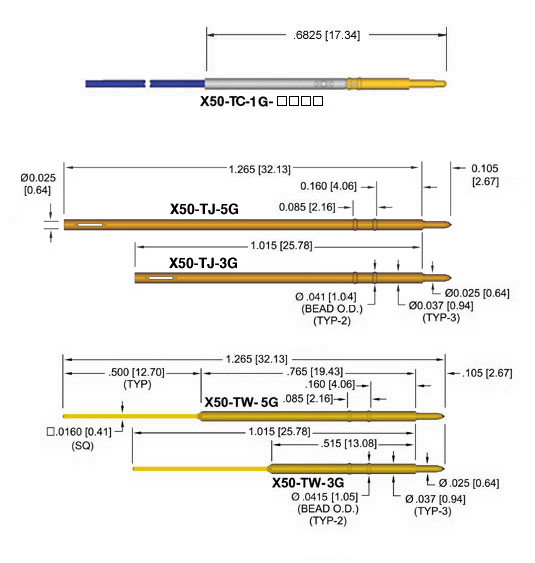

X50-25 Series

Termination P/N X50-T
-
 G-
Example: X50-TW-5G-3 5
Letter Description Material
C
Crimped Termination material: Heat treated BeCu/ Gold over Nickel
Tube material: Nickel Silver ID precious metal clad
J
Wire Jack Heat treated BeCu, gold plated
W
Wire Wrap Heat treated BeCu, gold plated
Digit Description
1
.6825 [17.34] Body length
3
1.015 [25.78] Body length
5
1.265 [32.13] Body length
Digit Description
3
30 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
8
28 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]

Recommended drill hole sizes for G10 or similar material:
 Back Plate: .038/.039 [0.97/0.99]

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
