| The X50-25
Series probes and terminations
are designed for loaded board
testing. |
| |

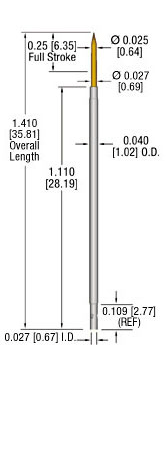

| Probe
Specifications |
| |
| Mechanical |
| |
Full Stroke:
.250 [6.35] |
| Working stroke:
up to .167 [4.24] |
| Operating temp:
40°F to 250°F [5°C to 120°C] |
| |

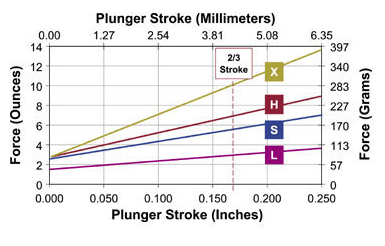

| Spring
Force |
| |
 |
|
|
| |
| |
All
specifications subject to change without
notice. All dimensions are in inches
[mm].
All spring forces in ounces [gms]. |
|
|
|
| |
|
