X39-25 Series

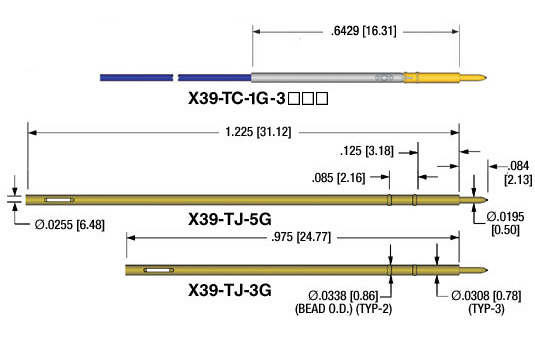

Wired Termination P/N X39-T
-
G-
Example: X39-TJ-3G-3 5

Letter Description Material
C
Crimped Termination material: Heat treated BeCu/ Gold over Nickel
Tube material: Nickel Silver ID precious metal clad
J
Wire Jack Wire jack heat treated BeCu / Gold plated over Nickel
Digit Description
1
.642 [16.31] Body length
3
.975 [24.77] Body length
5
1.225 [31.12] Body length
Digit Description
3
30 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
