Wire Plugs are used to connect 28 or
30 AWG solid conductor, Kynar insulated
wire to all QA Technology .050 inch centers
"P" termination sockets. Sockets are also
available with pre-attached wire and other
termination styles.
Wire Plugs are easily plugged into sockets
and can be unplugged and reused. They
are self-insulating and color coded for
wire gage. WP28 is used for 28 AWG wire
and has a red insulator, WP30 is used
for 30 AWG wire and has a blue insulator.

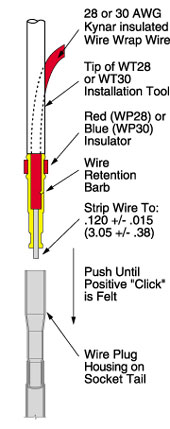

- Insert 28 or 30 AWG solid conductor
Kynar insulated wire, stripped to length
shown, into WP28 or WP30 Wireplug. Insertion
is complete when insulation stops against
internal shoulder and bare wire protrudes
through tip of Wire Plug.
- Using tweezers or appropriate WT Installation
Tool, insert Wire Plug and wire assembly
into back of socket until Wire Plug
shoulder is flush with socket opening.
A positive "click" will be felt when
assembly is complete.
- Wire Plugs are reusable and may be
removed by pulling straight back on
the wire. The Wire Plug will remain
attached to the wire.
- Wire Plugs may be reused many times.
If Wire Plug installation or retention
force is noticeably reduced, the wire
is worn. Simply cut and re-strip the
wire to restore original forces.
- Multiple-strand wire may not be used.
Use solid conductor wire only.
- Proper wire strip length is important.
Wire strippers pre-set to the proper
strip length are available through QA
Technology. Order WS28 or WS30 depending
on wire gage.
|
| |
|
|
| |
|
