The WJ2830 Wire Jack shown crimped to wire. This assembly is easily plugged into sockets and can be unplugged and reused.

Wire Jacks are used to connect 28 or 30 AWG solid conductor, Kynar insulated wire to 039-16 series sockets and X50-TJ terminals. The same Wire Jack (WJ2830) is used for both wire gages.

Wire Jacks are available with or without pre-attached wire. An air-actuated crimper (CR2830) is also available for permanently attaching customer-supplied wire to Wire Jacks.

1. Connect the crimper to 60±5 psi (4.2±0.4 kg/cm2) air.
2. Strip the 28 or 30 AWG solid conductor, Kynar insulated wire to .120±.015 inches (3.05±.38 mm). QA offers WS28 and WS30 wire strippers preset to this length.
3. Insert the wire fully into the Wire Jack, making certain the Kynar insulation bottoms inside.
4. Insert the wire and Wire Jack assembly fully into the crimping nest.
5. Press and release the trigger.

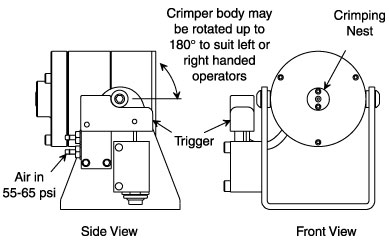

CR2830 Air-Actuated Crimper

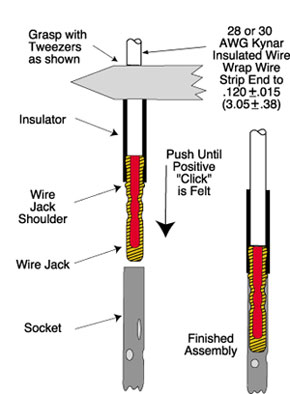

Wire Jack Installation

1. Grasp the wire just behind the Wire Jack Insulator with tweezers as shown.
2. Insert assembly into back of socket until Wire Jack shoulder contacts socket. A positive "click"will be felt when assembly is complete.

Wire Jacks are reusable and may be removed by pulling straight back on the wire.

The crimper is a precision tool which requires no maintenance other than occasional adjustment of crimp depth.
