The adjustable installation tools are
used to install sockets at any set height
from flush to the maximum possible for
a particular socket. The set height is
adjusted via a built-in micrometer and
locked at the desired height. The set
height can be changed and the tool reused
as often as needed.
|
AT50-KIT
AT50M-KIT |
050-S  B255 |
Flush to .270
[6.86] |
050-SBB160/2 |
Flush to .270
[6.86] |
050-SBB161/3 |
Flush to .360
[9.14] |
|
A75-KIT
AT75M-KIT |
075-SD 250 |
Flush to .250
[6.35] |
075-SD 251 |
Flush to .345
[8.76] |
|
AT100-KIT
AT100M-KIT |
100-SD 160 |
Flush to .190
[4.83] |
100-SD 250 |
Flush to .250
[6.35] |
100-SD 251 |
Flush to .345
[8.76] |
 |

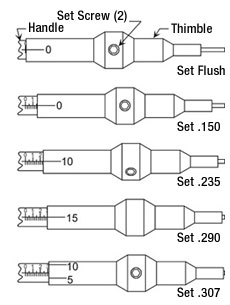

| Examples
of Set Heights for AT Tools |
Adjusting the set height on QA's adjustable
tools is the same as using a micrometer.
The tool handle has markings from zero
to .350" (9mm) in .025" (0.5mm) increments,
and the thimble has markings in .005"
[0.1mm] increments around its circumference.
Each full rotation of the thimble changes
the set height by .025" (0.5mm). An example
of various set heights are shown at right.
Using the supplied hex key wrench, tighten
both set screws on the thimble to lock
it in place. To change the tool's set
height, loosen both screws, dial the thimble
to the new set height, and re-tighten
the screws.
The thimble can be dialed past the zero
position to negative set heights. Dialing
the thimble until it stops does not set
the tool flush - see the Set Flush example.
The Handle and Thimble are calibrated
as a matched set. Do not separate tool
parts or swap parts with any other adjustable
tool.
These are precision tools and should
be handled as such. No maintenance is
required. |
