| The M08-89
Series IC Probe is designed
for testing ball grid arrays.
Mechanical
Compliance (includes both plungers):
.035 (0.89)
Total Working Stroke (includes
both plungers): .027 (0.69)
Operating Temp.: 40° F to 250°
F [5° C to 120° C]
Current Rating: 1 Amp |
 |
|
| |
| |
All
specifications subject to change without
notice. All dimensions are in inches
[mm].

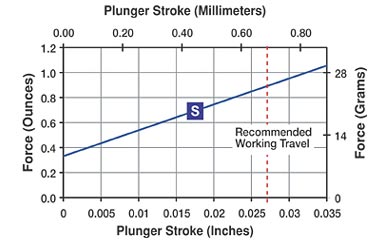

All spring forces in ounces [gms]. |
|
|
|
| |
|
