Double-ended
sockets allow construction of
fixtures with far shorter signal
path lengths than conventional
wire-wrapped designs. The shorter
path length allows better control
of the signal from the tester
circuits to the Unit
Under Test (UUT). |
| |

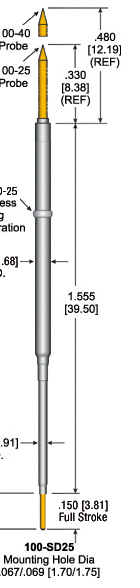

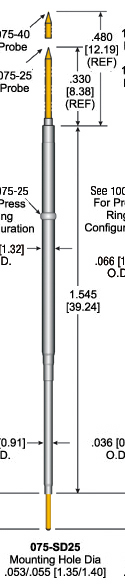

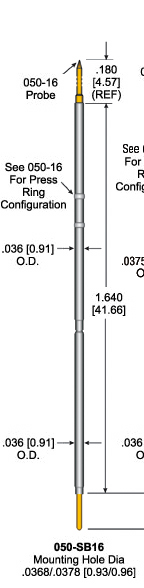

| Probe
Specifications |
| |
| Mechanical |
| |
| Full stroke:
.160 [4.06] |
| Working stroke:
up to .107 [2.72] |
|
| |
|
|
|
| |
| |
All
specifications subject to change without
notice. All dimensions are in inches
[mm].
All spring forces in ounces [gms]. |
|
|
|
| |
|
