125-25 Series

Hole Specifications
Drill Size
Decimal
.0940 / .0960 [2.39 / 2.44]
2.4 mm/ #41
0.0945/ 0.0960

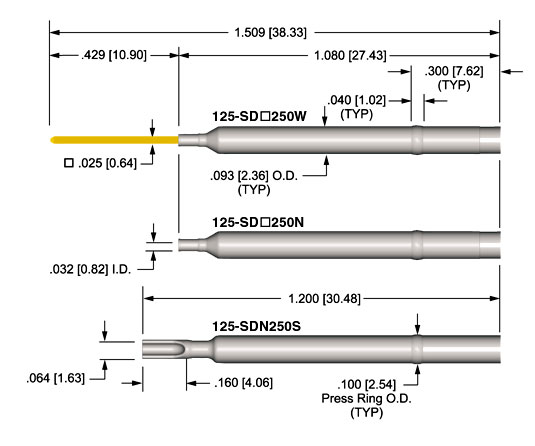

Socket P/N 125-SD 250
Example: 125-SDN250S
Letter Material
N
Nickel silver/no finish
G
Nickel silver/OD gold plated
Letter
Description
N
No Termination
S
Solder cup (1)
W
Square wire wrap pin
Notes: (1) Not available in G tube material

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
