100-40 Series

Hole Specifications
Drill Size
Decimal
.0670 / .0690 [1.70 / 1.75]
#51 1.75 mm
0.0670/ 0.0689

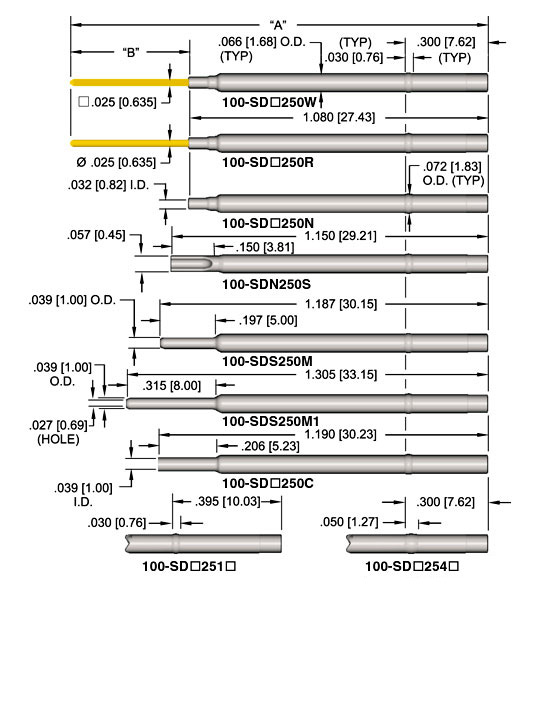

Socket P/N 100-SD 25
-
Example: 100-SDG250W
Letter Material
G
Nickel silver/OD gold plated (7) (9)
H
High conductivity alloy/ID & OD precious metal clad (4) (5) (7)
N
Nickel silver/no finish
S
Stainless steel/no finish (1) (4) (7)
Digit
Description
0
Single press ring located at .300 [7.62]
1
Single press ring located at .395 [10.03] (5) (7) (8)
4
Single extra long press ring (5) (7) (8
Letter Description
A
B
C
Crimp (2) (4) (7) (8)
M
Male round tube (3) (4) (7)
M1
Male round tube (3) (4) (7)
N
No termination (2)
S
Solder cup (4) (6) (7) (8) (10)
R*
Round pin
1.490 [37.85]
.410 [10.44]
R1*
Round pin
1.627 [41.33]
.547 [13.89]
R3*
Round pin
1.296 [32.92]
.216 [5.49]
R5*
Round pin
2.027 [51.49]
.947 [24.05]
W*
Square wire wrap pin
1.509 [38.33]
.429 [10.90]
W1*
Square wire wrap pin (6)
1.774 [45.06]
.694 [17.63]
W2*
Square wire wrap pin (6)
2.124 [53.95]
1.044 [26.52]
Letter Description
H
High force probe indent (4) (5) (6) (8)

Blank no option

* Pin material: Phosphor bronze/gold plated over nickel

Notes: (1) Available only in M termination
  (2) Available only in N & G tube material
  (3) Available only in S tube material
  (4) Not available in 1or 4 press ring
  (5) Not available in C, M or S termination
  (6) Not available in G tube material
  (7) Not available in H option
  (8) Not available in H tube material
  (9) Not available in M or S termination
  (10) Not available in S tube material

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
