100-16 Series

Hole Specifications
Drill Size
Decimal
.0670 / .0690 [1.70 / 1.75]
#51/ 1.75 mm
0.0670/ 0.0689

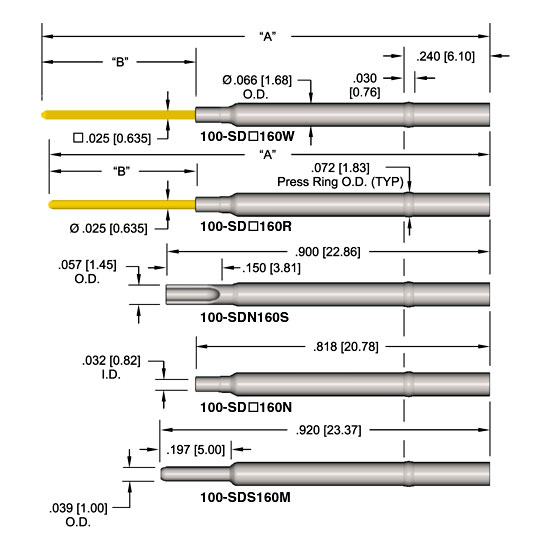

Socket P/N 100-SD 160
Example: 100-SDG160R
Letter Material
G
Nickel silver/OD gold plated (5)
N
Nickel silver/no finish
S
Stainless steel/no finish (3)
Letter Description
A
B
M
Male round tube (4)


N
No termination (2)


S
Solder cup (1) (2)


R*
Round pin (2)
1.228 [31.19]
.410 [10.44]
R1*
Round pin (2)
1.365 [34.67]
.547 [13.89]
R3*
Round pin (2)
1.034 [26.26]
.216 [5.49]
R5*
Round pin (2)
1.765 [44.83]
.947 [24.05]
W*
Square wire wrap pin (2)
1.247 [31.67]
.429 [10.90]
W1*
Square wire wrap pin (1) (2)
1.512 [38.40]
.694 [17.63]
W2*
Square wire wrap pin (1) (2)
1.862 [47.29]
1.044 [26.52]

* Pin Material: Phosphor bronze/gold plated over nickel

Notes: (1) Not available in G tube material
  (2) Not available in S tube material
  (3) Available only in M termination
  (4) Available only in S tube material
  (5) Not available in M or S termination

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
