075-40 Series

Hole Specifications
Drill Size
Decimal
.0530 / .0550 [1.35 / 1.40]
1.35 mm/ #54
0.0531/ 0.0550

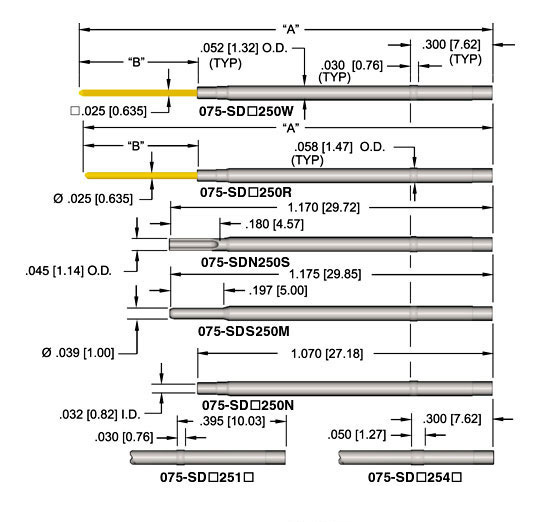

Socket P/N 075-SD 25
Example: 075-SDN250R

Letter Material
G
Nickel silver/OD gold plated
N
Nickel silver/no finish
S
Stainless steel/no finish (1) (6)
Digit Description
0
Single press ring located at .300 [7.62]
1
Single press ring located at .395 [10.03] (4)
4
Single extra long press ring (4)
5
Triple press ring (3) (4)
Letter Description
A
B
M
Male round tube (1) (5)


N
No termination


S
Solder cup (1) (2) (3)


R*
Round pin (3)
1.480 [37.59]
.410 [10.44]
R1*
Round pin (3)
1.617 [41.07]
.547 [13.89]
R3*
Round pin (3)
1.286 [32.66]
.216 [5.49]
R5*
Round pin (3)
2.017 [51.23]
.947 [24.05]
W*
Square wire wrap pin (3)
1.499 [38.08]
.429 [10.90]
W1*
Square wire wrap pin (2) (3)
1.764 [44.81]
.694 [17.63]
W2*
Square wire wrap pin (2) (3)
2.114 [53.70]
1.044 [26.52]

* Pin Material: Phosphor bronze/gold plated over nickel

Notes: (1) Not available in 1, 4 or 5 press ring
  (2) Not available in G tube material
  (3) Not available in S tube material
  (4) Not available in M or S termination
  (5) Available only in S tube material and 0 press ring
  (6) Available only in M termination

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
