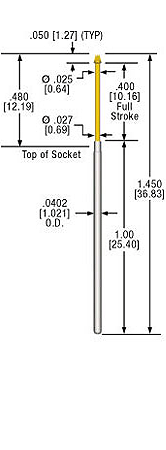

| The 075-40
series probes and sockets
are designed for mixed height
(dual level) loaded board testing. |
| |
| Probe
Specifications |
| |
| Mechanical |
| |
| Full Stroke:
.400 [10.16] |
| Working stroke:
up to .317 [8.05] |
| Operating temp.:
40°F to 250°F [5°C
to 120°C] |
| Current rating
(for single probe in ambient
air with 70°F [20°C]
rise): 6.5 Amps |
| |
| |
 |
|
|
| |
| |
All
specifications subject to change without
notice. All dimensions are in inches
[mm].

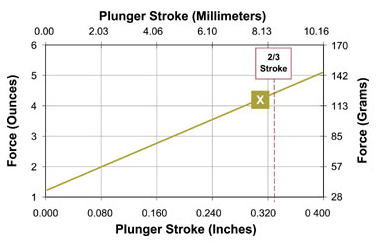

All spring forces in ounces [gms]. |
|
|
|
| |
|
