050-R25 Series

Hole Specifications
Drill Size
Decimal
.0380 / .0390 [.970 / .099]
#62/ #61
0.0380/ 0.0390

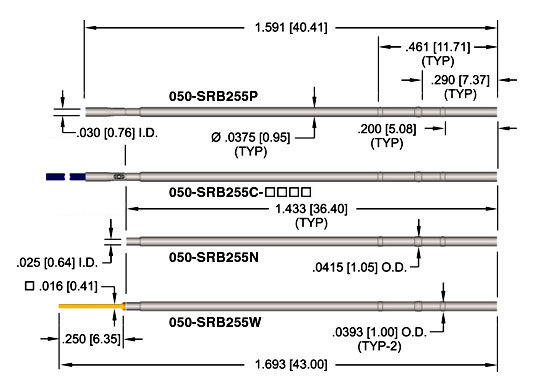

Socket P/N 050-SR 255
-
Example: 050-SRB255P-3
Letter Material
B
Heat-treated BeCu/Nickel plated.
Letter Description
P
Plug housing stainless steel I/D precious metal clad, accepts WP28 or WP30 wire plugs
C
Crimp (specify wire size option)
N
No Termination
W
Square wire wrap pin; phosphor bronze/gold plated over nickel
Digit Description
Available with P Termination Only:
0
050-SRB255P with WP30 wire plug
8
050-SRB255P with WP28 wire plug
Available with C Termination Only:
3
30 AWG Kynar insulated solid wire
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
8
28 AWG Kynar insulated solid wire
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
6
26 AWG Kynar insulated solid wire
Number Min=03 = 3" [76]; Max=72 = 72" [1828]

No option required

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
