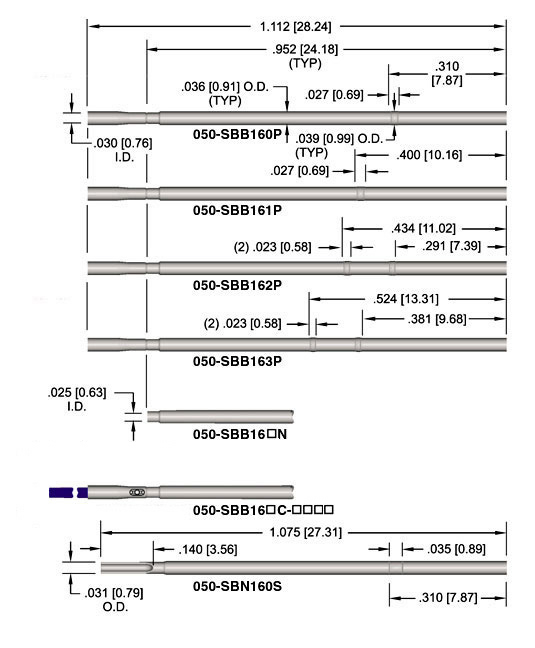

050-16 Series

Hole Specifications
Drill Size
Decimal
.0368 / .0378 [.935 / .960]
#63 .95 mm
0.0370/ 0.0374

Socket P/N 050-SB 16 -
Example: 050-SBB16OP-3 5

Letter Material
B
Heat-treated BeCu/Nickel clad ID/OD.
N
Nickel silver/no finish (2)
Digit Description
0
Single press ring located at .310 [7.87]
1
Single press ring located at .400 [10.16]
2
Double press ring located at .434 [11.02]
3
Press ring located at .524 [13.31]
Letter Description
P
Plug housing, stainless steel ID precious metal clad, accepts WP28 or WP30 wire plugs
C
Crimp (specify wire size option)
N
No Termination
S
Solder cup (1)
Digit Description
3
30 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
8
28 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
6
26 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]

Blank no option
Notes: (1) Available only in N Tube Material
  (2) Available only with S Termination

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
