050-05 Series


Hole Specifications
Drill Size
Decimal
.0368 / .0378 [.935 / .960]
#63 .95 mm
0.0370/ 0.0374

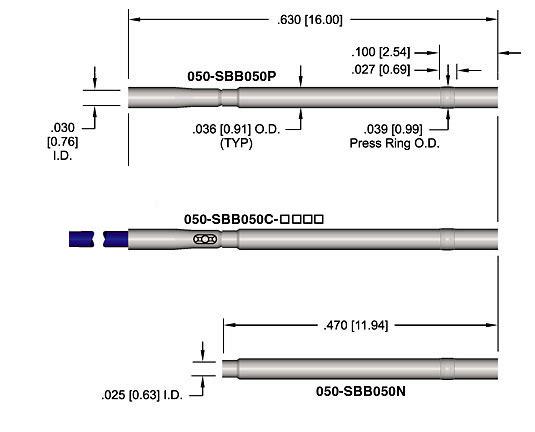

Socket P/N 050-SB
050
 -
Example: 050-SBB050P-3 5
Letter Material
B
Heat-treated BeCu/Nickel plated.
Letter
Description
P
Plug housing, stainless steel/ID precious metal clad, accepts WP28 or WP30 wire plugs
C
Crimp (specify wire size option)
N
No Termination
Digit Description
3
30 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
8
28 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]
6
26 AWG Kynar insulated solid wire (select color & length below)
Number Min=03 = 3" [76]; Max=72 = 72" [1828]

Blank no option
All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
