| The 050-05 series
probes and sockets
are designed for bare board
testing. |
| |

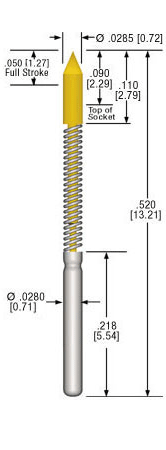

| Probe
Specifications |
| |
| Mechanical |
| |
| Full stroke:
.050 [1.27] |
| Working stroke:
up to .050 [1.27] |
| Operating temp.:
40°F to 250°F [5°C
to 120°C] |
| Current rating
(for single probe in ambient
air with 70°F [20°C]
rise): 4 Amps |
| |
| |
|
|
|
| |
| |
All
specifications subject to change without
notice. All dimensions are in inches
[mm].

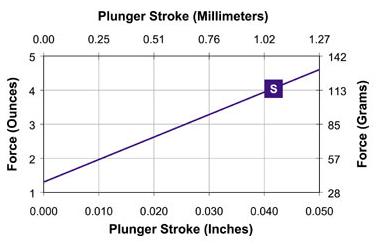

All spring forces in ounces [gms]. |
|
|
|
| |
|
