Hole Specifications	Drill Size	Decimal
.0307 / .0317 [.078 / .810]	1/32".80 mm	0.0312 / 0.0315

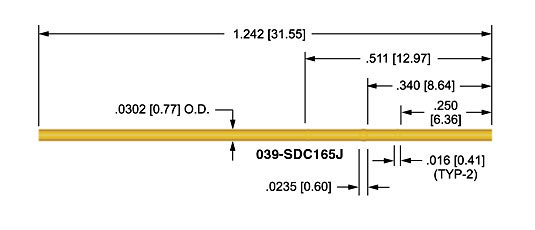

Socket P/N 039-SD		165
Example: 039-SDC165J

Letter

Material

Heat-treated BeCu/plated gold over Nickel

Letter

Description

Wire Jack, accepts WJ28C or WJ30C

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
