The 039-16
series probes and sockets
are designed for loaded board
testing. |
| |
| Probe
Specifications |
| |
| Mechanical |
| |

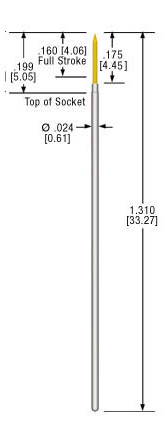

Full
stroke: .160 [4.06] |
Working stroke:
up to .107 [2.72] |
Operating
temp.: 40°F to 250°F
[5°C to 120°C] |
Current rating
(for single probe in ambient
air with 70°F [20°C]
rise): 3.5 Amps |
| |
| |
 |
|
|
| |
| |
All
specifications subject to change without
notice. All dimensions are in inches
[mm].

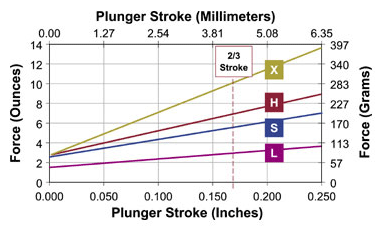

All spring forces in ounces [gms]. |
|
|
|
| |
|
