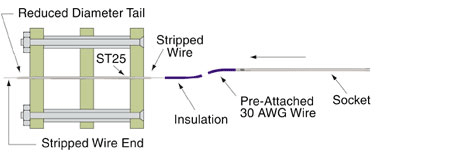

Use the ST25 socket
threading tool to ease installation of 025-16
series sockets in multi-plate fixtures.
Pin
Gauge
Mounting holes in G10
material should
be gauged at .0205/.0215 [0.52/0.55]
diameter using PG25 pin gauge
Installation
Order the PT50/39
to install 025-16 series probes. Installation
of the 025-16 probes should be performed
in a controlled manner to minimize
the possiblity of damage to the delicate
components.
All
specifications subject to change without
notice. All dimensions are in inches
[mm].
All spring forces in ounces [gms].
