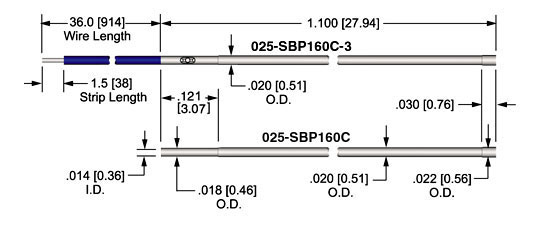

Socket P/N 025-SB		16O		-
Example: 025-SBP16OC-3

Letter

Material

Nickel Silver/ID precious metal clad

Letter

Description

Crimp

Letter

Description

Socket with 30 AWG Kynar insulated solid wire 36 [914] pre-attached. Blue insulation 1.5 [38] strip length

No option required

All specifications subject to change without notice. All dimensions are in inches [mm].
All spring forces in ounces [gms].
